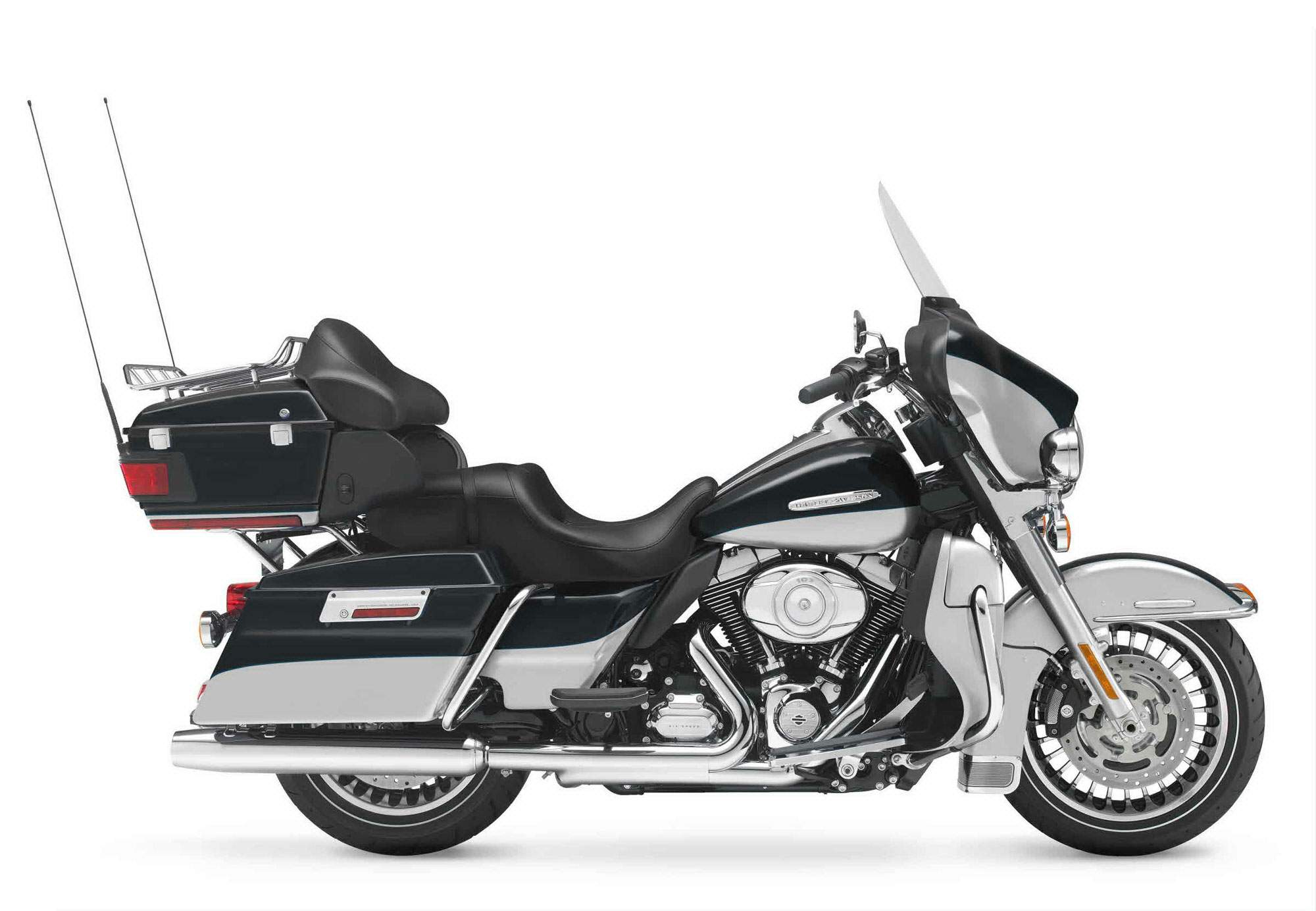

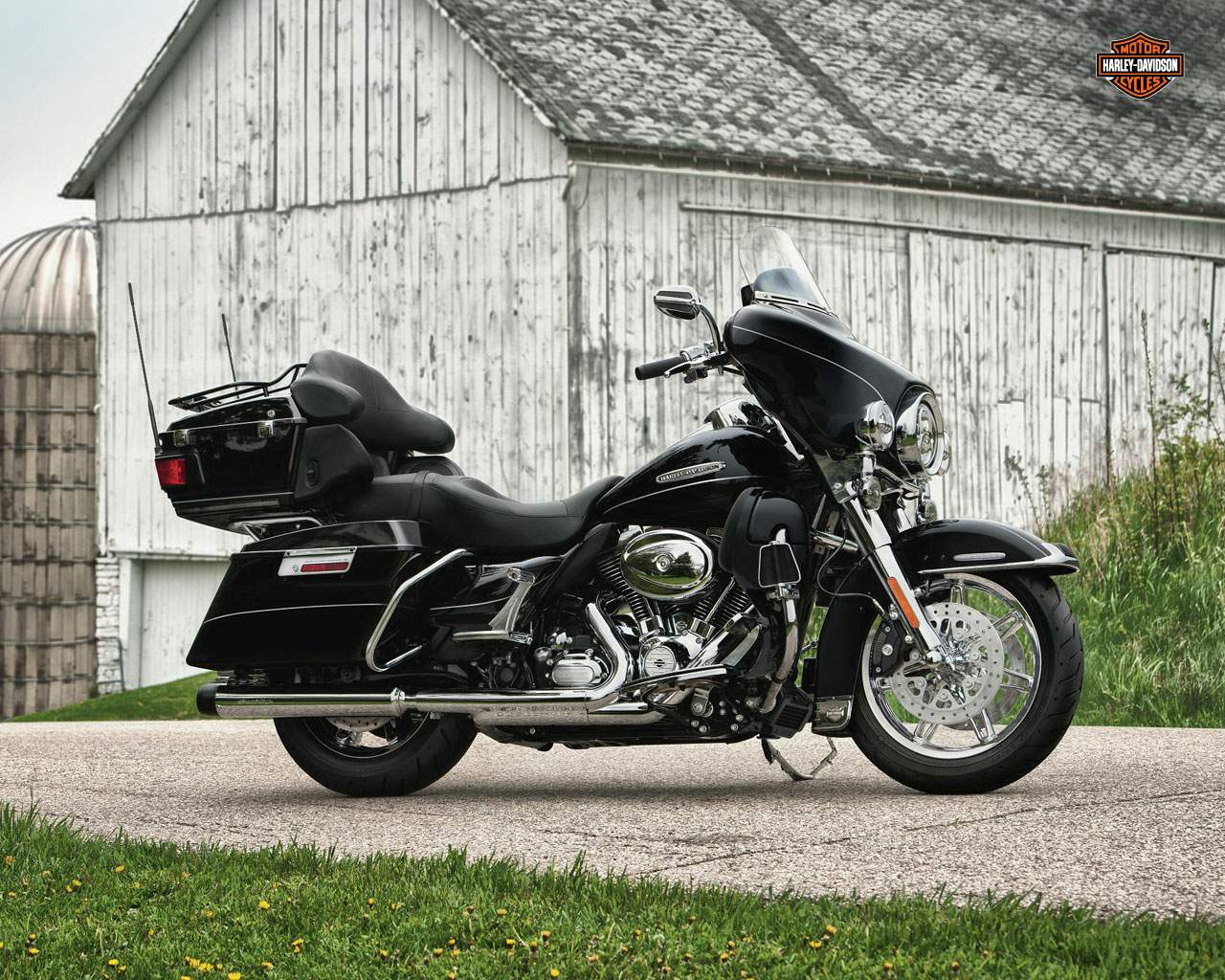

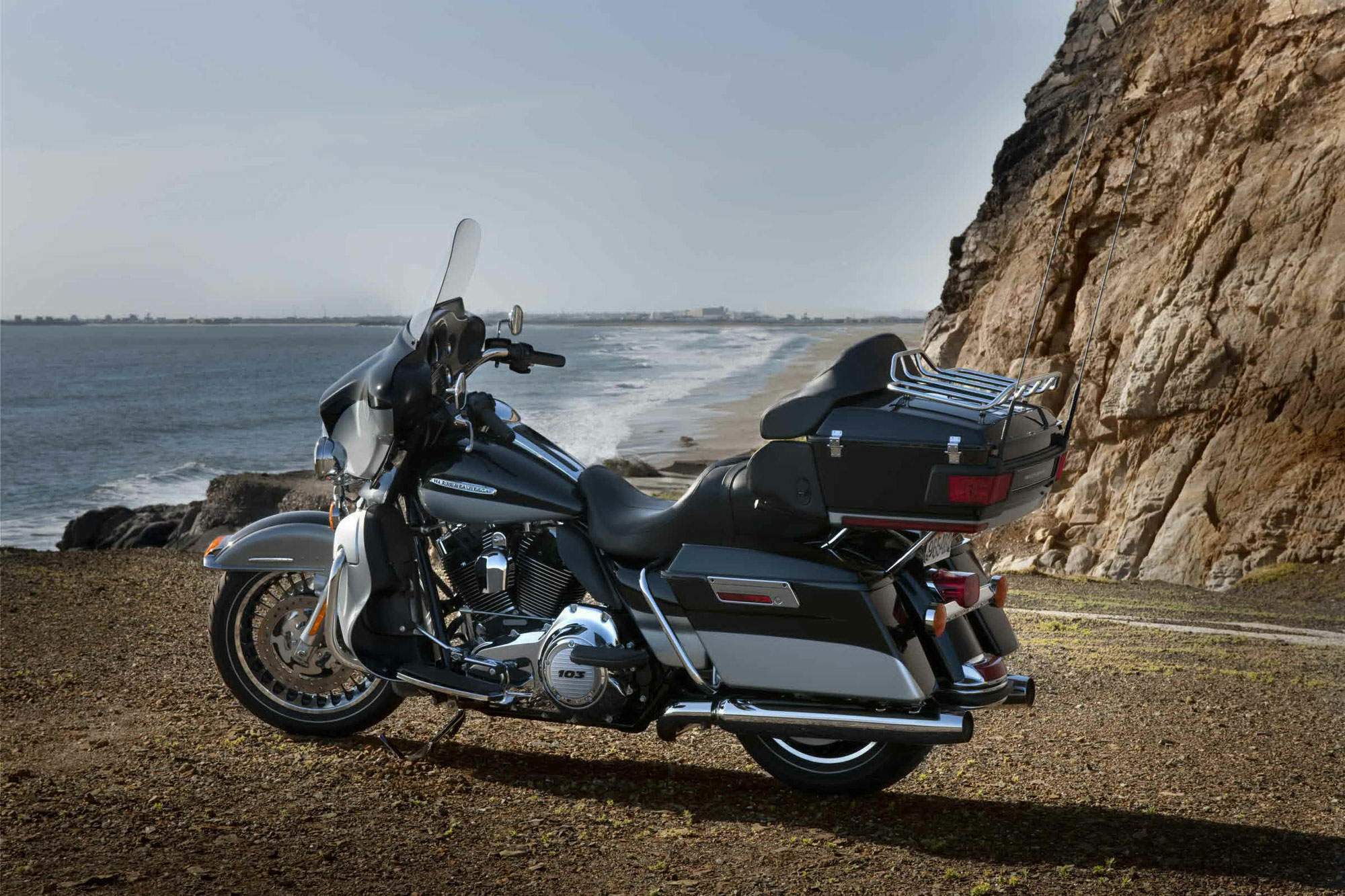

2012 Harley Davidson Electra Glide Ultra Classic Limited

2012 Harley Davidson Electra Glide Ultra Classic Limited

Harley Davidson FLHTK Electra Glide Ultra Limited

Make Model

Harley Davidson FLHTK Electra Glide Ultra Limited

Year

2012

Engine

Four stroke, Twin Cam 103� with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder

Capacity

1690 cc / 103.1 cub in.
Bore x Stroke 98.4 x 111.25 mm
Cooling System Air/Liquid cooled,
Compression Ratio 10.0:1
Exhaust Chrome, 2-1-2 dual exhaust with tappered mufflers

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

143 Nm / 105.4 ft/lb @ 3750 rpm

Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.593  /  2nd 6.650  /  3rd 4.938   /  4th 4.000  /   5th 3.407  /  6th 2.875
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded

Front Suspension

41.3 mm telescopic, cartridge-style damping

Rear Suspension

Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable

Front Brakes

2x 300mm disc 4 piston caliper ABS

Rear Brakes

Single 300mm disc 4 piston caliper ABS
Wheels Front Contrast Chrome Impeller Cast Aluminum
Wheels Rear Contrast Chrome Impeller Cast Aluminum

Front Tyre

BW 130/80B17 65H

Rear Tyre

BW 180/65B16 81H

Rake 26�
Trail 170 mm / 6.6 IN
Dimensions Length 2600 mm / 102.4 in.
Wheelbase 1625 mm / 64 in.
Seat Height Laden 695 mm / 27.3 in
Unladen 740 mm / 29.1 in
Gross Vehicle Weight Rating 616.9 kg / 1360 lbs

Wet Weight

414 kg / 896 lbs
Oil Capacity 3.8 Litres / 4 qt.

Fuel Capacity

22.7 Litres / 6.0 US  gal

or 2012/13, all eight Harley-Davidson� Touring models are powered by a Twin Cam 103TM engine with Automatic Compression Release and an integrated oil cooler. Producing 102 ft. lbs. of peak torque at 3500 rpm, the Twin Cam 103TM engine provides an outstanding performance around town and on the open road. All Touring models also feature the 6-Speed Cruise DriveTM transmission, 41.3 mm telescopic front forks, air-adjustable rear shocks and Isolated Drive System for smooth power delivery. The Harley-Davidson� Touring chassis has a single-spar, rigid-backbone frame and two-piece swingarm designed to deliver responsive manoeuvrability and long-haul durability. Chassis geometry and suspension are calibrated to deliver confident handling and comfort.

All Touring models except the Ultra Limited will offer a new "tubeless" Chrome Lace Aluminium Wheel option for ease of tire replacement and repair. Six new colours or colour combinations are among the 12 paint options offered within the 2012 Touring model line.

Harley-Davidson� Touring Models

" Road King�
" Road King� Classic
" Electra Glide� Classic
" Ultra Classic� Electra Glide�
" Electra Glide� Ultra Limited
" Street Glide�
" Road Glide� Custom
" Road Glide� Ultra

Harley-Davidson FLHTK Electra Glide Ultra Limited Model Highlights

NEW Paint color options
� Contrast Chrome, 28-spoke Cast Aluminum wheels with narrow whitewall tires
� Black powder-coated powertrain with chrome covers
� Chrome 2-1-2 dual exhaust with tapered mufflers
� Bat-wing, fork-mounted fairing with clear, Lexan� windshield
� Smoked Lexan� adjustable fairing-mounted air deflectors
� Vented removable lower fairings with integral storage compartments
� Mid-frame air deflectors
� Chrome, low-profile fuel tank console
� Deep FL front fender with trim
� Stainless steel, classic touring handlebar
� One-piece, two-up Electra Glide� classic comfort stitch seat, sculpted for added comfort and easier straddling
� Passenger backrest with wrap-around armrests
� Injection-molded hard saddlebags with liners; 2.26 cu. ft. volume
� Injection Molded hard Tour-Pak� with soft luggage liners, storage pockets, wrap-around rear tail/brake lights and 12-volt, 15 amp power supply; 2.26 cu. ft. volume
� Premium Tour-Pak luggage rack
� Titanium-faced, fairing-mounted electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauges with white LED lighting and larger font
� Heated hand grips
� 80-watt, four-speaker Advanced Audio System by Harman/Kardon with CD/MP3 player, and CB/Intercom
� LED rear fender tip light
� Auxiliary passing lights

Harley-Davidson FLHTK Electra Glide Ultra Limited Features and Benefits

� Twin Cam 103� engine with Electronic Sequential Port Fuel Injection (ESTI) with heated O2 sensors and Electronic Throttle
Control (ETC)
� Integrated oil cooler
� 6-Speed Cruise Drive� transmission with integrated Isolated Drive System (IDS)
� Dunlop� �Multi-Tread� rear tire construction extends tire life by 25 percent
� Brembo� 4-piston front and rear caliper with dual front rotor brake system
� Air-adjustable rear shocks
� Full-length rider footboards
� Height-adjustable passenger footboards
� Six-gallon fuel tank
� Anti-lock Braking System (ABS)
� Harley-Davidson� Smart Security System with hands-free security fob
� Electronic cruise control
� Optional Original Equipment Custom Color paint program
